SMTP

2 min read

  • client based protocol
  • port 25
  • fetch emails and send emails
  • combied wiht POP3 or IMAP
  • can be between 2 SMTP servers and sever and client aswell
  • newer servers use port 587 : used for mails from authenticated users and servers (using STARTTLS)
  • in this, client → password and username to server and emails can now be transmitted
  • client then sends sender and recipients addrsses and the contents, parameters and other arguments
  • connection terminated afterwards
  • sometimes poert 465 used for ssl tls connections

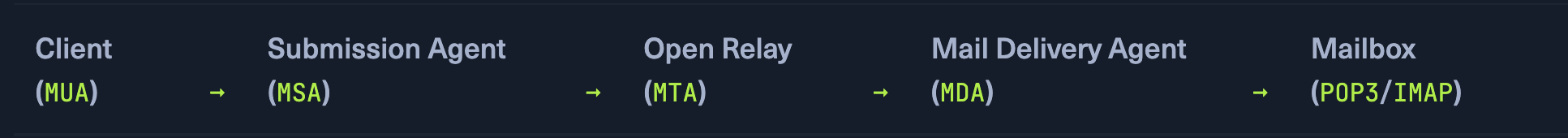

MUA : Mail User Agent : converts to header and body and sends to SMTP server CLIENT MSA: Mail SUbmission Agent: check validity (orgin) of the mail SERVER MTA: Mail Transfer Agent: sending and receiving emails SERVER MDA : Mail Delivery Agent: Transfers mail to recievers Mailbox Destination Server

Disadvantages

  • NO Delivery Confirmation
  • only english language erro message includeing header of the undelivered message returned
  • users not authenticated when connection established, sender unreliable Nowadays ESMTP only used: TLS, Authentication by plugin

Interacting With SMTP and Fingerprinting

Telnet

telnet 10.129.14.128 25`

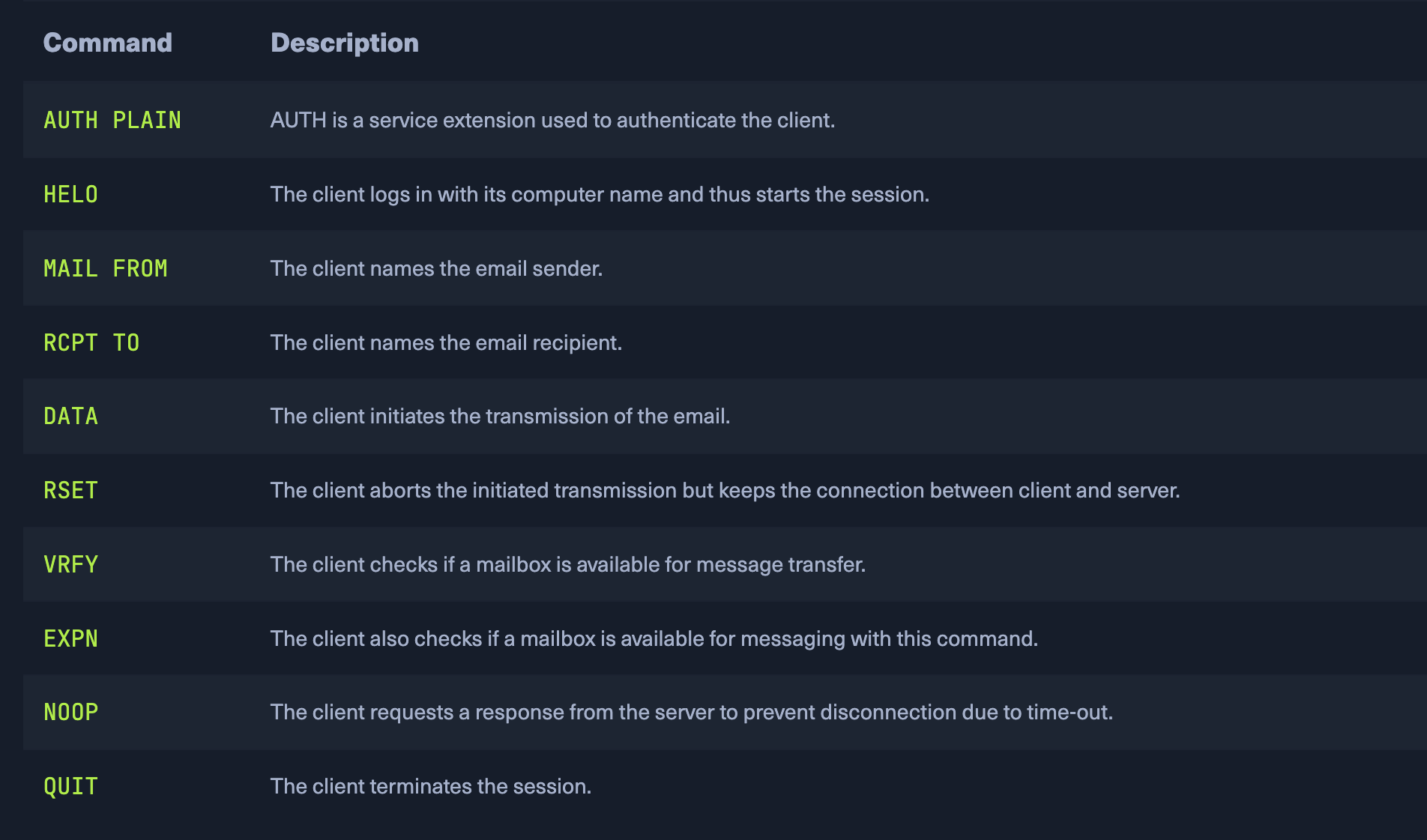

then use commands to perform actions

  • VRFY can be used to enumerate users on the system, doesnt always work
  • 252 code→ may confirm existence of non existing user Note: Webproxy connect to SMTP:

CONNECT 10.129.14.128:25 HTTP/1.0

Header:

  • sender
  • recipient
  • time of sending and arrival
  • stations on the way
  • content and format of the message

Dangerous Settings

  • To prevent the sent emails from being filtered by spam filters and not reaching the recipient, the sender can use a relay server that the recipient trusts. (bypass MSA (Submission agent))
  • Allowing all IP addresses.
mynetworks = 0.0.0.0/0

Allowing all IPs, leads to this SMTP server vulnerable to Fake Mails and connection initialazation with multiple parties. Also leads to spoofing mails and reading them.

Footprinting the Service

Nmap

sudo nmap 10.129.14.128 -sC -sV -p25

SMTP open-relay NSE script

sudo nmap 10.129.14.128 -p25 --script smtp-open-relay -v

Practice Lab

telnet: HELO → gives Hostname SMTP username enumration using smtp-user-enum :

smtp-user-enum -M VRFY -U ../footprinting-wordlist.txt -t 10.129.25.219 -w 20

-w: waittime for each request -U: user wordlist -t: smtp ip -M: Method
