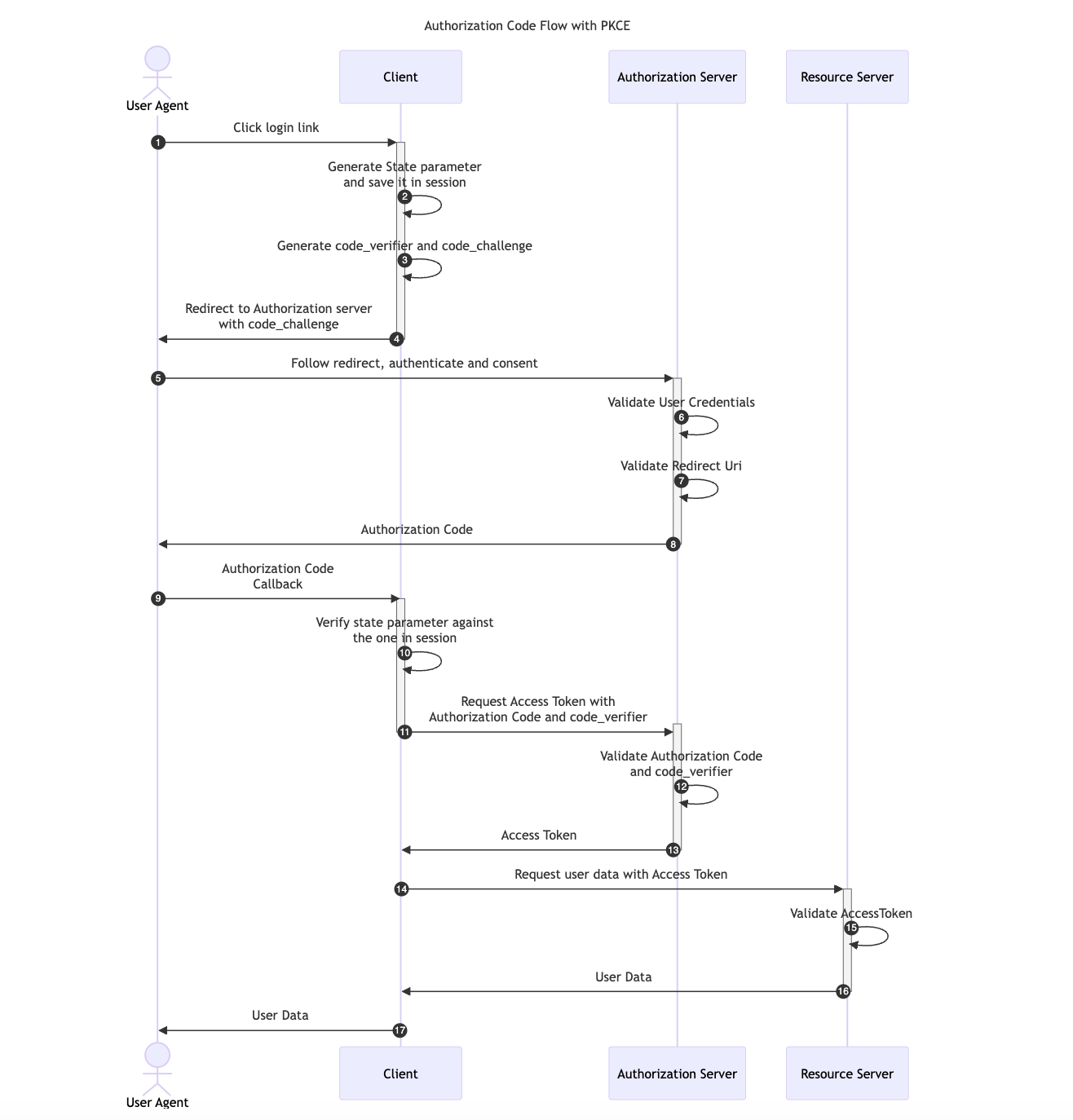

OAuth Authorization Code Flow with PKCE

This OAuth flow was designed for applications that cannot store a Client Secret, such as native or single-page apps

Secure way for Implicit Grant

Two new parameters are added to the default Authorization Code Flow, a random generated value called code_verifier and its transformed version, the code_challenge.

1. First, the Client creates and records a secret code_verifier and derives a transformed version t(code_verifier), referred to as the code_challenge, which is sent in the Authorization Request along with the transformation method t_m used.
2. The Client then sends the Authorization Code in the Access Token Request with the code_verifier secret.
3. Finally, the Authorization Server transforms code_verifier and compares it to t(code_verifier)
